Linghein CS TM Series (Tank-Mounted Compressor) — Condensed Version

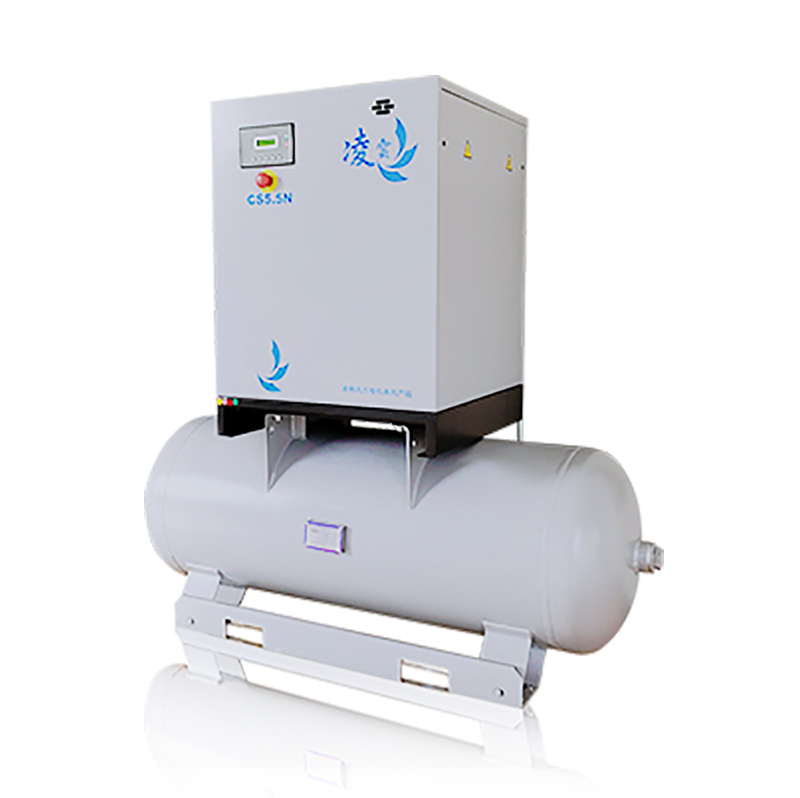

The CS5.5TM tank-mounted compressor integrates the pump assembly directly onto a storage tank, delivering stable, clean, and energy-efficient compressed air for industrial and commercial applications
Intelligent Controller
Bilingual EN/CN interface for easy operation
Multiple intelligent control modes for efficient running
Real-time monitoring of compressor operation pressure, runtime, and fault conditions viewable locally
Can be networked with plant control systems for load sharing and predictive maintenance
Modular One-Piece Design
Patented modular integrated structure: lower pressure drop, less leakage, reliable and efficient performance
Tank-mounted configuration: motor and pump assembly mounted directly on a heavy-duty tank — smaller footprint, shorter piping, easier installation and centralized maintenance
Tank dampens pulsations and provides immediate capacity for peak demand, reducing motor cycling → lower energy costs, extended component life, reduced thermal stress
Air-Filter System
High-quality heavy-duty air filter removes 99.9% of particles from ambient air
Effectively protects the compressor core and spare parts, ensuring stable operation and clean compressed air
Atlas Copco Air-end
Cooling System
Quiet, high-efficiency cooling design
Independent cooling fan delivers sufficient, stable airflow; enhanced cooling fins and optimized airflow channels maintain ideal temperatures under continuous duty
Maintenance & Reliability
Centralized service points and modular components for quick, easy maintenance with minimal downtime
Routine service covers air filter, oil filter, air/oil separator, belt, and lubrication oil
Durable, corrosion-resistant materials; vibration-balanced assembly with isolation features reduces noise and mechanical wear, extending service life
Applications
Pharmaceutical & medical devices: instrument air, packaging machinery, laboratory systems
Electronics manufacturing: pick-and-place machines, conformal coating, cleanroom environments
Other: laboratories, paint booths, textile operations, and any application sensitive to air quality
System Integration & Safety
Compatible with dryers, filters, regulators, and storage solutions to form a complete compressed air ecosystem
Equipped with pressure relief valves, thermal protection, and secure access panels; meets rigorous testing standards
GASFlow presents the CS5.5TM Tank Mounted Compressor, a purpose-built solution engineered to meet demanding industrial and commercial air supply requirements. The CS5.5TM compressor redefines expectations for tank mounted compressor performance by combining robust construction, efficient operation, and oil-free compressor technology to deliver clean compressed air for sensitive applications. With GASFlow’s commitment to quality and innovation in industrial gas equipment, the CS5.5TM Tank Mounted Compressor stands out as a dependable and cost-effective option for facilities seeking reliable, low-maintenance compressed air systems
Key Features and Design
The CS5.5TM compressor integrates a high-capacity, fully enclosed motor with a precision-engineered pump assembly mounted directly to a heavy-duty storage vessel. As a tank mounted compressor, the CS5.5TM compressor optimizes space utilization and simplifies installation: mounting reduces footprint, minimizes piping runs, and centralizes maintenance tasks. The tank mounted compressor design also improves system stability by dampening pulsations and providing immediate reservoir capacity for intermittent peak demand
Applications and Use Cases
The CS5.5TM compressor addresses a wide range of applications across multiple industries. In pharmaceutical and medical device manufacturing, the CS5.5TM Tank Mounted Compressor supplies clean air for instrument air, packaging machinery, and lab systems where oil contamination could compromise product integrity
Electronics manufacturing benefits from the CS5.5TM compressor’s oil-free compressor output, supplying clean air for pick-and-place machines, conformal coating processes, and cleanroom environments. The CS5.5TM Tank Mounted Compressor is equally well-suited for laboratory settings, paint booths, textile operations, and any industrial environment that prioritizes air quality
Performance and Efficiency
Performance optimization is central to the CS5.5TM compressor’s engineering. The unit utilizes a precision-machined pump block and high-efficiency motor components to deliver steady flow and pressure control while minimizing energy consumption. As a tank mounted compressor, the CS5.5TM compressor leverages the storage tank to reduce motor cycling and extend component life
Thermal management features, such as enhanced cooling fins and strategic airflow channels, maintain optimal operating temperatures under continuous duty cycles. The oil-free compressor design negates the need for oil cooling circuits, simplifying thermal management and reducing maintenance tasks. This combination of features contributes to the CS5.5TM Tank Mounted Compressor’s reputation for consistent, energy-conscious performance within GASFlow’s industrial gas equipment lineup
Maintenance and Reliability
GASFlow engineered the CS5.5TM Tank Mounted Compressor to be service-friendly, with accessible service points and modular components that reduce downtime during routine maintenance. The tank mounted compressor structure consolidates key connections and filters at a central location, so technicians can perform inspections and replacements quickly. The oil-free compressor construction eliminates oil change intervals and potential oil-related failures, streamlining preventive maintenance schedules
Control and Integration
The CS5.5TM compressor includes intelligent control options that support both simple on/off operations and advanced system integration. A user-friendly control interface enables operators to monitor pressure, runtime, and fault conditions locally. For larger facility-wide systems, the CS5.5TM Tank Mounted Compressor can be networked with plant control systems to synchronize operation, optimize load sharing, and facilitate predictive maintenance strategies
Compatibility with common pneumatic accessories and filtration modules makes it straightforward to customize the CS5.5TM compressor for specific air quality and pressure requirements. GASFlow’s industrial gas equipment approach emphasizes interoperability, enabling the CS5.5TM Tank Mounted Compressor to work seamlessly with dryers, filters, regulators, and storage solutions to form a complete compressed air ecosystem
Safety and Compliance
Safety is a priority in the CS5.5TM compressor’s design. The tank mounted compressor meets rigorous testing standards and includes pressure relief valves, thermal protection, and secure access panels to prevent accidental contact with moving parts. The oil-free compressor configuration helps minimize fire and contamination hazards associated with oil-lubricated systems, particularly in sensitive industrial settings. GASFlow ensures that the CS5.5TM Tank Mounted Compressor aligns with relevant certification standards for industrial gas equipment and compressed air systems
Innovation and Technical Advantages
The CS5.5TM compressor exemplifies GASFlow’s commitment to innovation in tank mounted compressor solutions. By focusing on oil-free compressor technology and compact tank-mounted integration, GASFlow addresses modern industrial demands for clean air delivery, reduced maintenance, and operational efficiency. The CS5.5TM Tank Mounted Compressor’s optimized air end, efficient motor design, and modular serviceability collectively deliver measurable advantages: lower total cost of ownership, simplified installation, and reliable air quality
For facilities that demand dependable, clean, and efficient compressed air, the GASFlow CS5.5TM Tank Mounted Compressor offers a compelling choice. The CS5.5TM compressor provides the benefits of oil-free compressor technology packaged in a compact tank mounted compressor configuration, backed by GASFlow’s industrial gas equipment expertise
