LS LP & LSV LP Series Oil free fixed speed screw air compressor7.5-55kw8/10bar
LS LP & LSV LP Series Oil free fixed speed screw air compressor7.5-55kw8/10bar
LS LP & LSV LP Series Oil free fixed speed screw air compressor7.5-55kw8/10bar
LS LP & LSV LP Series Oil free fixed speed screw air compressor7.5-55kw8/10bar
LS LP & LSV LP Series Oil free fixed speed screw air compressor7.5-55kw8/10bar
LS LP & LSV LP Series Oil free fixed speed screw air compressor7.5-55kw8/10bar

LS LP & LSV LP Series Oil free fixed speed screw air compressor
7.5-55kw
8/10bar

Model LS LP Series (Fix Speed) & LSV LP Series (VSD)
Configuration Variable Speed Drive
Category Air-cooled Professional Type
Pressure 0.5-0.8bar/1bar/40bar
Power 7.5-250kW
Air-end Atlas Copco Air-end
Request a Quote
  • Overview
  • Product Features
  • Applications
  • Specifications

Overview

Linghein LSW Series Oil-Free Screw Air Compressor

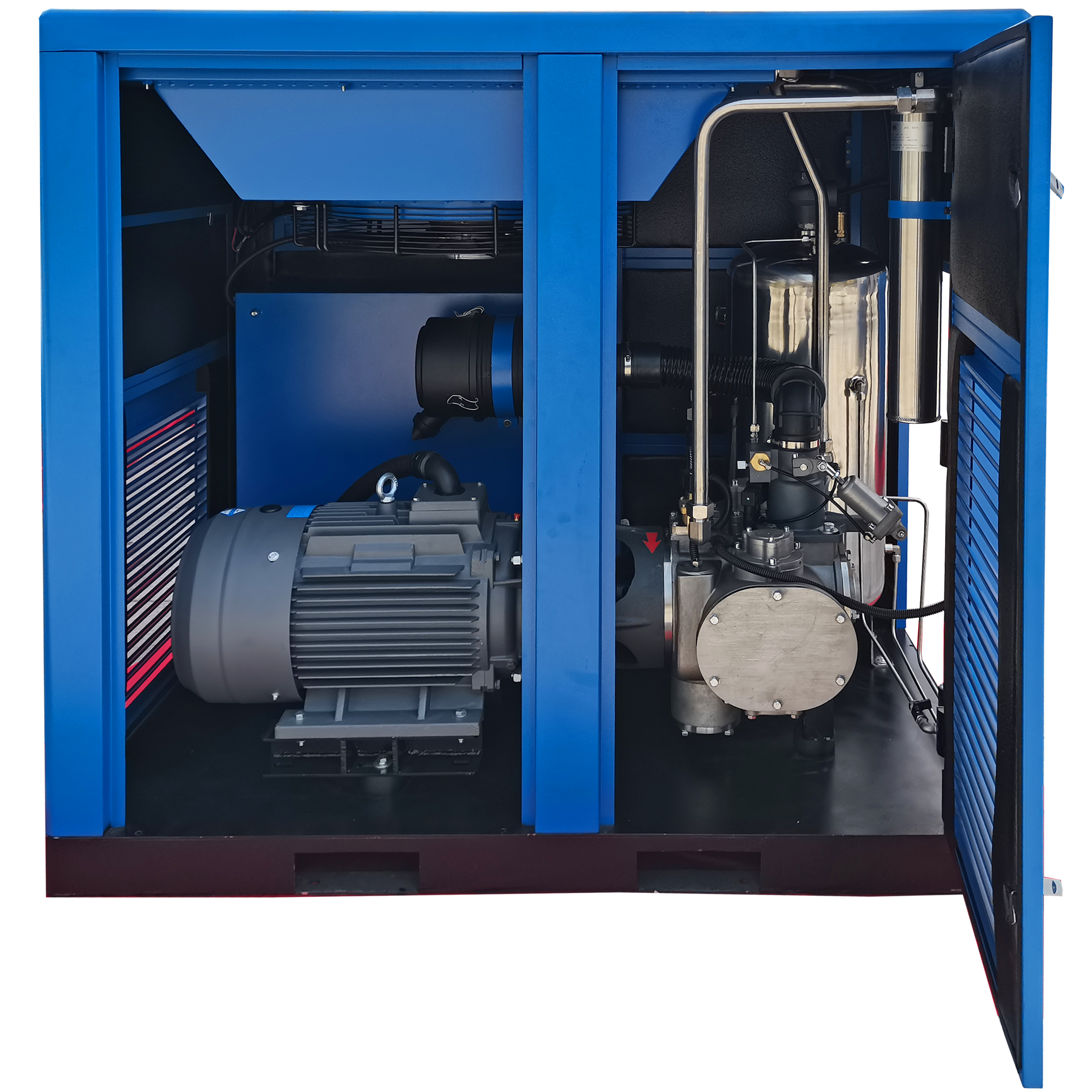

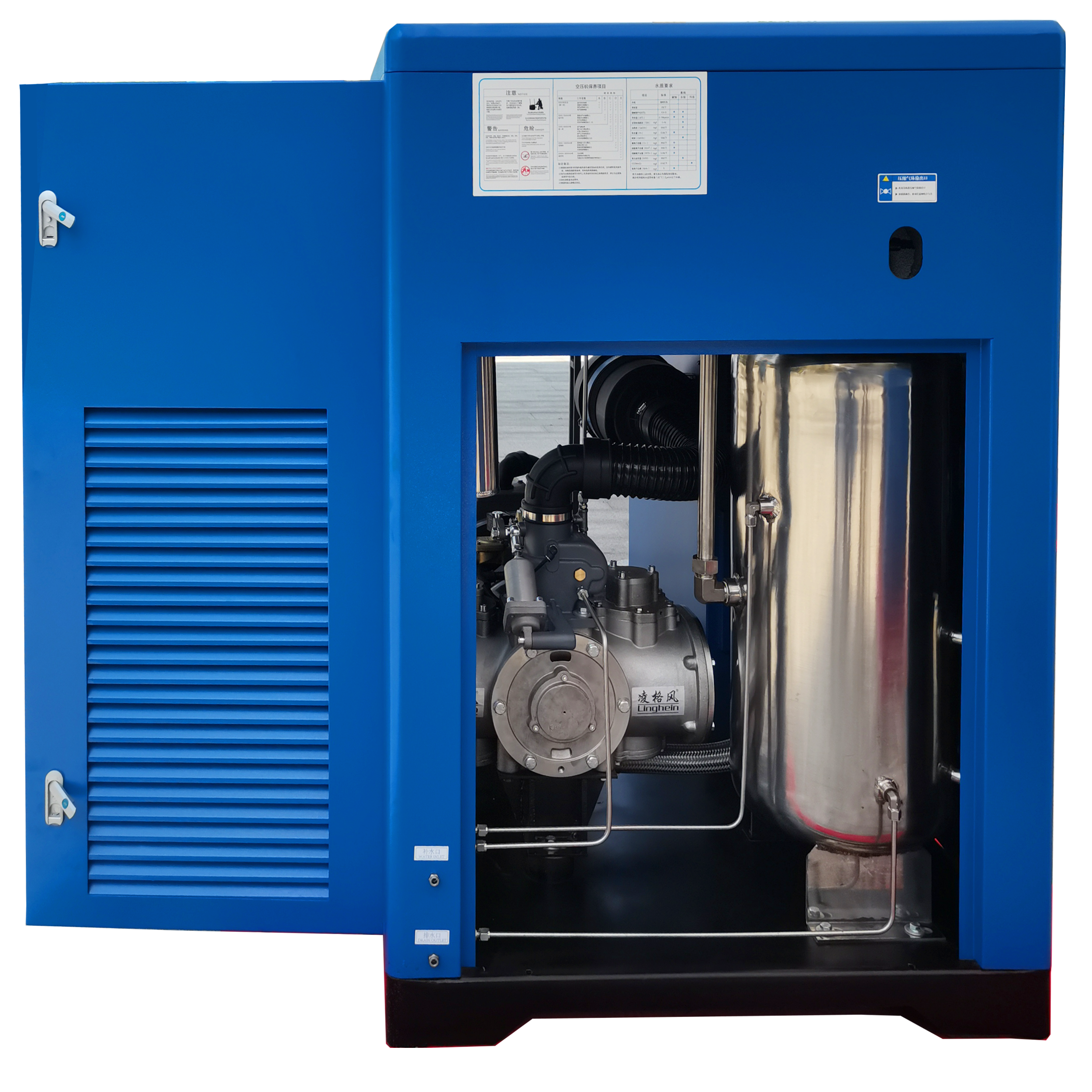

P (5).pngP (6).png

Features

Class 0 Clean Air

Eliminates oil contamination risk entirely

Energy Efficient Oil-Free

Cuts energy use while sustaining high output

Smart IoT Monitoring

Real-time insights and remote management

Sustainable Oil-Free

Environmentally responsible design

Application Scenarios

Pharmaceutical production

vital Class 0 clean air; lower operating costs

Food processing

trusted Class 0 clean air

Electronics manufacturing

contamination-free air; cost-effective; remote management

Medical applications

Class 0 clean air from an energy-efficient oil-free system

Technical Advantages

Advanced rotor design for better energy efficiency

Precision engineering that maintains Class 0 clean air

Stable pressure and low maintenance

IoT monitoring that prevents issues before they occur

Sustainable design across the full product lifecycle

Product Features

Stainless Steel Water-Lubricated Air-end

Stainless steel alloy air-end with optimized screw profile delivers higher airflow and efficient near-isothermal compression for stable, energy-saving performance.

Reliable Water & Filtration System

Full stainless steel water circuit combined with an integrated industrial-grade water purifier and high-efficiency air filtration (up to 99.9%) ensures clean operation, corrosion resistance, and longer component life.

Intelligent & Durable Design

Customized stainless steel solenoid valve, dedicated unloading valve, and premium ABB electrical components provide stable control, smoother operation, and long-term reliability.

Flexible Configuration Options

Available in permanent magnet and two-stage medium-pressure models to meet different airflow, pressure, and energy-efficiency requirements across various industrial applications.

Applications

Designed for industries requiring clean and stable compressed air, this water-lubricated compressor is ideal for food processing, pharmaceuticals, textiles, electronics, and chemical applications. Its oil-free compression design, corrosion-resistant water circuit, and high-efficiency filtration ensure reliable operation, low contamination risk, and stable performance in demanding production environments.

Specifications

Model

Power

(kW)

 Capacity F.A.D(m/min)

Noise

dB

 Water Pipe

Water Intake

(m3/h)

Water

(L)

Dimension(mm)

Length*Width*Height

Weight

(kg)

 Outlet
0.5~0.8Mpa 1.0Mpa
LSW-8A PM 7.5 0.5~1.1 0.4~0.9 57 - 10 1060x630x1106 320 3/4"
LSW-11A PM 11 0.7~1.7 0.6~1.4 60 - - 26 1200x755x1130 400 3/4"
LSW-15A PM 15 1.0~2.3 0.9~2.0 60 - - 26 1200x755x1130 440 3/4"
LSW-18A PM 18.5 1.2~3.0 1.0~2.6 63 - - 30 1400x900x1285 640 1"
LSW-22A PM 22 1.5~3.6 1.3~3.0 63 - - 30 1400x900x1285 640 1"
LSW-30A PM 30 2.1~5.1 1.8~4.3 66 - - 40 1400x950x1390 760 1 1/4"
LSW-37A PM 37 2.6~6.4 2.2~5.3 66 - - 40 1580x1000x1485 880 1 1/4"
LSW-45W PM 45 3.3~8.2 2.8~6.3 68 2" 10 90 1800x1360x1670 1050 2"
LSW-55W PM 55 4.0~10.0 3.4~8.5 69 2" 12 100 1800x1360x1670 1100 2"
LSW-75W PM 75 5.2~13.0 4.4~11.1 72 2" 18 100 1800x1360x1670 1230 2"
LSW-90W PM 90 6.9~17.2 5.9~14.6 73 2" 20 120 2200x1550x1800 2080 2 1/2"
LSW-110W PM 110 8.2~20.3 7.0~16.6 75 2" 24 120 2200x1550x1800 2230 2 1/2"
LSW-132W PM 132 9.7~24.1 8.2~20.0 75 2" 30 120 2200x1550x1800 2360 2 1/2"
LSW-160W PM 160 11.3~28.2 9.6~24.0 77 2" 35 160 2700x1800x1970 3900 DN80
LSW-185W PM 185 12.9~32.1 11.0~27.3 77 2" 38 160 2700x1800x1970 4050 DN80
LSW-200W PM 200 13.8~34.5 11.7~29.3 78 2" 42 200 2700x1800x1970 4200 DN100
LSW-220W PM 220 15.5~38.6 13.2~32.8 79 2" 47 200 2700x1800x1970 4400 DN100
LSW-250W PM 250 17.1~42.6 14.5~36.2 79 2" 53 200 2700x1800x1970 4800 DN100
*PM: Permanent Magnet A: Air Cooled W:Water Cooled
Model

Power

(kW)

 Capacity F.A.D(m/min)

Noise

dB

 Water Pipe

Water Intake

(m3/h)

Water

(L)

Dimension(mm)

Length*Width*Height

Weight

(kg)

 Outlet
0.5~0.8Mpa 1.0Mpa
LSW-74W PM 37+37 40 6.5 70 G2" 18 86 2000x1500x1630 1900 DN25
LSW-90W PM 45+45 40 7.8 72 G2" 28 130 2650x1710x1700 2300 DN32
LSW-110W PM 55+55 40 10.0 72 G2" 28 140 2650x1710x1700 2700 DN32
LSW-150W PM 75+75 40 12.5 72 G2" 28 150 2650x1710x1700 3000 DN32
LSW-180W PM 90+90 40 16.0 74 G2" 38 170 3000x1680x1860 3500 DN40
LSW-220W PM 110+110 40 20.0 76 G2" 47 170 3000x1680x1860 3700 DN40
LSW-242W PM 132+110 40 23.0 76 DN65 53 170 3000x1680x1860 4000 DN40
* PM: Permanent Magnet W: Water Cooled
Model

Power

(kW)

 Capacity F.A.D(m/min)

Noise

dB

 Water Pipe

Water Intake

(㎡/h)

Water

(L)

Dimension(mm)

Length*Width*Height

Weight

(kg)

 Outlet
0.5~0.8Mpa 1.0Mpa
LSW-8A 7.5 1.05 0.8 57 - - 10 1060x630x1106 300 3/4"
LSW-11A 11 1.7 1.4 60 - - 26 1200x755x1130 420 3/4"
LSW-15A 15 2.2 1.9 60 - - 26 1200x755x1130 420 3/4"
LSW-18A 18.5 3.0 2.2 63 - - 30 1400x900x1285 600 1"
LSW-22A 22 3.6 3.0 63 - - 30 1400x900x1285 620 1"
LSW-30A 30 5.1 3.9 66 - - 40 1400x950x1390 740 1 1/4"
LSW-37A 37 6.3 5.3 66 - - 40 1580x1000x1485 860 1 1/4"
LSW-45W 45 7.8 6.3 68 2" 10 90 1800x1360x1670 1020 2"
LSW-55W 55 10.0 7.9 69 2" 12 100 1800x1360x1670 1080 2"
*A:Air Cooled W:Water Cooled
